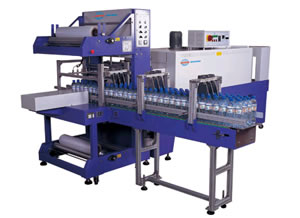

Sleeve Shrink Wrapping Machine XF-ZS
Features of Sleeve Shrink Wrapping Machine:
1. Automatically perform the functions of piling, wrapping, shrinking and cooling at one stroke
2. Electrical units and pneumatic components are imported from well-known brands: OMORAN, SICK, NOGER, and MITSUBISHI etc.

Application:
This shrink wrapping machine is suited for shrink packing of such products as pop can, glass bottle, beer, mineral water, drinks and so on. When combines with constant temperature shrinker, it is applicable to PE, PVC shrink film.

Technical Specification of Sleeve Shrink Wrapping Machine:

Name	Sealing machine	Shrink tunnel
Horizontal height and length of infeed conveyor	850±50mm/1500mm	850±50mm
Max packing dimension	L700×W300×H300	L(unlimited)×W600×H400
Packing speed	10-18pcs/min	0-12m/miute
Power supply	3φ/220V/380V 50/60Hz 2KW	3φ/220V/380V 50/60Hz 20KW
Air source	0.6Mpa(6Kg/c㎡)
Sealing time and temperature	0.5-1.5S/0-250℃	0-250℃
Film width/thickness	MA×650mm/0.04-0.12mm
Dimensions	L1500×W2700×H2000	L3000×W970×H1400
Weight	465kg	550kg
