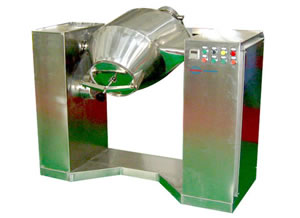

High Efficiency Mixer
Features of High efficiency Mixer:
1. Unique cylinder structure
2. High mixing efficiency, no dead corner
3. Even mixing effect

Application:
The mixer is suited for mixing of dry granules in food, pharmaceutical and other industries, with particular effect to free flowing powder and granules.

Technical Specification:

Model	XF-300	XF -500	XF 1000	XF -1500
Full volume (m3)	0.3	0.5	1.0	1.5
Capacity (kg/time)	60	100	200	300
Mixing time (min)	60-10	60-10	60-10	60-10
Cylinder speed (rpm)	12	12	12	12
Motor power (kw)	1.1	2.2	4	4
Dimension(mm)	1850×880×1850	2200×1100×2000	2300×1500×3000	3550×1650×2550
Weight (kg)	310	550	810	980
