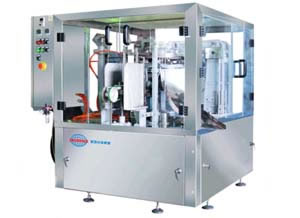

Automatic Bag Fill Seal Packaging Machine XFG-8S
Application of Automatic Bag Fill Seal Packaging Machine:
This kind of packaging machine is suitable for the 4-side sealing flat bag. Combined with different measuring system, it is widely used for packing of granule, powder and the liquid products.

Working Process:
1.Bag feeding and taking
2. Opening (date printing)
3. Filling (measured filling)
4. Transition (vibration, de-dusting, pressing stuff)
6. Heat seal, air exhaust
7. Product discharge

Technical Specification of Automatic Bag Fill Seal Packaging Machine:

Capacity	30-50 bag/min,
Bag size	(L)100-300mm (W)100-200 mm
Filling weight	Up to1000 g/bag (max)
Bag sealing	Sealing by heat and pressure
Power supply	AC380V±10%,3-phase 50Hz
Power Consumption	2.0KW
Air Consumption	0.2m3/min at 5-8 kgf/cm2 Air compressor is supplied by customer
Machine Weight	1200kg
Dimension	W×L×H 1140×1500×1560mm
