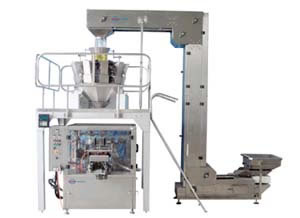

Bag Granular Fill Seal Packaging Machine XFG
Components of Bag Granular Fill Seal Packaging Machine:
1. Vibrating feeder
2. Z type lifter
3. 10-head weigher
4. Automatic bag form fill seal packaging machine
5. Platform

Features of Bag Granular Fill Seal Packaging Machine:
1. Automatically perform such process as feeding, dosing, filling, sealing, date coding.
2. High-accuracy weighing, improved efficiency, with out breaking material

Application:
This packaging machine is applied for packing of anomalous solid and the granule material, such as puff snack food, potato chips, crispy rice, jelly, candy, apple chips, dumpling, small cookie, medical material, deep-frozen food, etc.

Technical Specification of Bag Granular Fill Seal Packaging Machine:

Capacity	30-50 bag/min, according to product type and characteristics
Bag size	(L)100-300mm (W)100-200 mm
Filling weight	up to1000 g/bag (max)
Bag sealing	heat sealing
Power supply	AC380V±10%,3-phase 50Hz
Power Consumption	2.0KW
Air Consumption	0.2m3/min at 5-8 kgf/cm2
Machine Weight	1200kg
Dimension	W×L×H 1140×1500×1560mm
