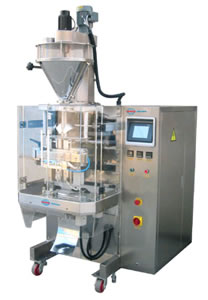

Automatic Vertical Powder Packing Machine XFF-L
Features of Automatic Vertical Powder Packing Machine:
1. Use intelligent temperature controller for accurate temperature control
2. The drive control center is composed of PLC servo system, pneumatic control system and super touch screen
3. Different technical parameters can be stored in the touch screen for easy operation
4. Adopt error indicating system to handle the trouble immediately.

Application:
This kind of packing machinery is especially suited for the packing of power and granule material such as monosodium glutamate, solid beverage, grape sugar, feedstuff, solid medicine, etc.

Specification of Automatic Vertical Powder Packing Machine:

Measure method	Auger dosing	weighing feedback tracking
Bag size	(W)70-200mm (L)100-300mm	(W)100-250mm (L)100-350mm
Filling weight	10-5000g	10-5000g
Packing precision	≤1%
Packing speed	25-60bag /min
Power supply	Three phase 380/220V 50-60 Hz
Power	6 kw
Air pressure	6-8 kg/c㎡
Air consumption	0.2m3/min
Machine weight	700kg	950Kg
Dimensions	1300×1500×2600mm
