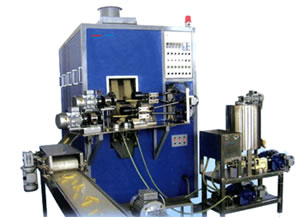

Multifunction Automatic Egg-roll Wafer Machine XF-HWB
Brief Introduction of Multifunction Automatic Egg-roll Wafer Machine:
Firstly, the raw material, after being mixed in the slurry making machine, will be sent to the wheel drum of the baking machine by the slurry feeding machine. Then, after baking, the soft bar will be scraped by the scraper and put in a reel shaft to circle into the bar shape. Lastly, after being cut to the required length, the bar will be collected in the convey belt.

Components:
- 1 set of material slurry making machine
- 1 set of main baking machine
- 2 sets of slurry feeding machine
- 2 sets of filling machine
- 2 sets of the conveying belt

Specification of Multifunction Automatic Egg-roll Wafer Machine:

Diameter of the wheel drum	2000mm
Air consumption	4kg/h
Electric power consumption	10kw/h
Capacity	Hollow: 25-30kg/hr. filled: 50-60kg/h
Dimensions	3400*1700*2500mm
Weight	5000kg

Ball Miller

Flour and Other Material Cream Making Machine

Cream Feeder and the Core Injection Machine

Forming machine
