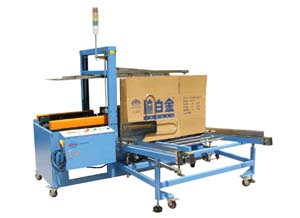

Automatic Carton Erector XFC-KX
Features of Automatic Carton Erector:
1.Automatically perform the functions of carton opening, shaping, folding etc.
2. Adopt PLC and the display screen, resulting in easier operation and lower cost.
3. Be able to correct the right-angle automatically
4. Compact design: easy to install
5. Carton-providing device: accurately put cartons of different size
6. Adhesive tape at the bottom of the carton: clean, accurate

Technical Specification:

Carton size	L200-500 W150-400 H100-450mm
Speed	8-12 carton/min
Table height	750±50mm
Dimensions	1700×1930×1500mm
Power supply	220/380 50/60Hz
Air source	5-6kg/cm3
Adhesive tape	48/60/72mm
Machine Weight	600kg
