Paper Roll Type Bag Packing Machine

Finished Product


Features:
AHM is special high speed packing machine. It operates via full servo technologies and PLC microcomputer control with stable operation. Also, it is with mobile touchscreen interactive interface, which is easy to operate and with safely doors, which is easy to clean and maintain.
The machine is suitable for packing foodstuff, pharmaceuticals, pesticide and daily using chemicals, etc. Different filling methods can be used for different products, such as liquid, powder, granule. Additionally, it can be equipped with photoelectric cell device, printers, tear notch.
Packing type:three-side or four-side sealed sachets or stand-up pouches (doypack type)
Applicattions :
1. Computerized weigher
2 .Auger filler
3. Filler for liquid or pasty products
4. Volumetric cup filler
Specifications :

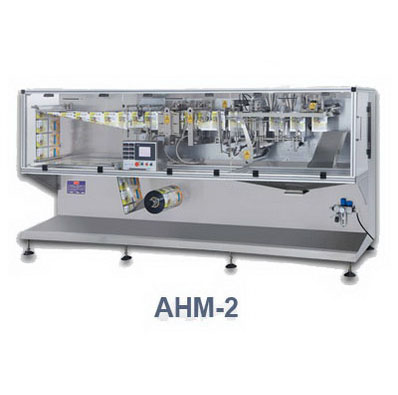

Model | AHM-1 (Single bags) | AHM-2 (Dual-link bags) |
Filling Volume | 50~200ml | 20~100ml |
Packing Speed | 40~60 bag/min | 80~120 bag/min |
Packing Size | W 80~100 mm L 180~225 mm |
W (60+60)x L 70 mm W (90+90)x L 220 mm |
Power Source | 220/380V 5KW | 220/380V 5KW |
Dimensions L x W x H (m/m) |
3200x1000x1600 | 3200x1000x1600 |
*Air compressor is not included
